Hydraulic Driven Lubricator

SKF introduces its Hydraulic Driven Lubricator which eliminates the need for manual lubrication of equipment attachments.

Hydraulicdrivenlubricator 10338648

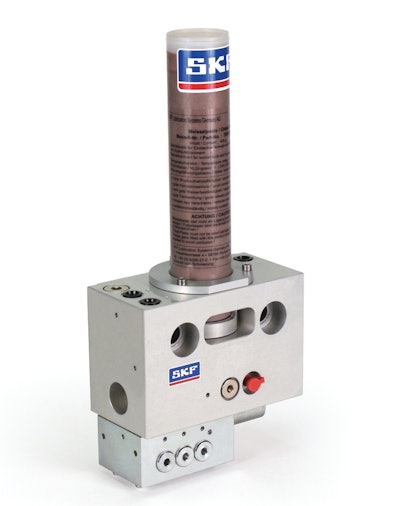

The SKF Hydraulic Driven Lubricator offers an innovative solution for lubricating construction and off-highway equipment attachments (including hammers, breakers, pulverizers, shears, and grapples, among others).

  • Automatically lubricates attachments using an integrated pump driven by the hydraulic oil itself
  • Performs in tough operating environments and reduces need for time-consuming and often dangerous manual relubrication
  • Increases machine availability, reduces maintenance costs, improves worker safety, and reduces risk of wear and breakdowns
  • Incorporates patented pump design
  • Drive piston is pressurized on an alternating basis by machine’s hydraulic circuit via a hydraulic changeover valve
  • Piston performs either in suction or delivery phase as long as machine and/or attachment is in operation
  • Pump feeds right lubricant in right amount at right time
  • Delivery rates can be adjusted or reset to meet operating requirements
  • Easy to install by fitting unit directly on attachment
  • Performs with chisel paste typically recommended for rugged equipment exposed to harsh environments
  • Changing lubricant cartridge is quick and easy when necessary
