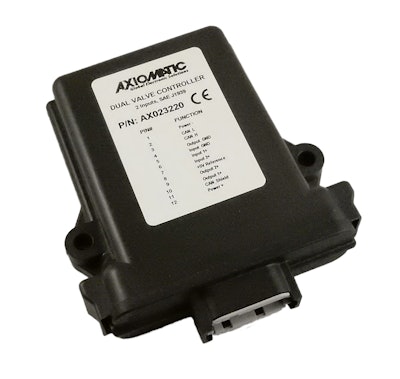

Axiomatic Dual Input, Dual Output Valve Controller (2i2o)

Axiomatic's Dual Input, Dual Output Valve Controller comes with one CAN port and features two fully configurable universal inputs and outputs.

Axiomatic DualInputDualOutputController 5570a413f05c4
Axiomatic Logo 2019

The Dual Input, Dual Output Valve Controller (2i2o) from Axiomatic is a high temperature controller for installation under the hood of a mobile machine.

  • Features two fully configurable universal inputs and outputs
  • Inputs can be set up to read voltage, current, resistance, frequency or digital command input signals
  • Outputs can be set up to drive proportional current, hotshot digital current, proportional voltage, proportional PWM and straight on/off digital loads
  • Sophisticated control algorithms allow user to program the controller for a wide range of applications without the need for custom software
  • Comes with one CAN (SAE J1939) port and is available in different models ranging from 250 kpbs to 1 Mbps baud rates
  • Suitable for harsh environments with rugged packaging and connectors as well as a CE mark for the EMC Directive
  • Offers 12V, 24V or 48V DC nominal output
  • Operational up to 125 C
  • Features rugged IP67 rating
  • Applications include use for proportional fan drive control, PID closed loop valve control, hydraulic valve control and signal conversion
