AMETEK VIS Intelligent Control Module

The Intelligent Control Module is capable of controlling power for up to 40 devices.

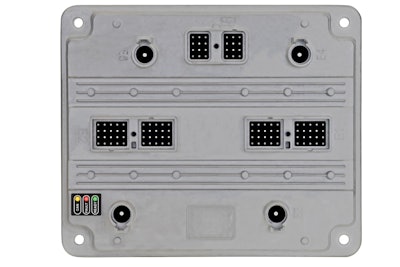

Ametek Vis Icm 599
Ametek With Vis Logo

AMETEK Vehicular Instrumentation Systems (VIS) introduces the Intelligent Control Module (ICM), a user definable module that connects with multiple vehicle systems to enhance control for end users.

  • Interfaces through dual CANbuses and 32 switched inputs to control power for up to 40 devices
  • Use of visual logic programming enables interfacing with multiple vehicle systems to sense and control devices such as lighting, HVAC, radio, switches, sensors, motors, solenoids and other devices on the CANbus
  • Empowers users to leverage advanced diagnostics and wide array of inputs to enhance vehicle’s telematics system with more detailed view of vehicle’s status
  • Offers more in depth look at vehicle’s system through visual modeling and simulation utilizing built-in Simulink integration
  • Users can model system connections and logic, then automatically generate code for vehicle application
  • Simulink can be used to perform tests early in development process and as often as needed to iteratively develop systems
  • Provides more customizable capabilities by replacing fuses and relays with smart power and SAE J1939 CAN communications
  • Offers more custom control of chassis components
  • Eliminates need for smaller modules through better communication and more robust control of vehicle components
  • Designed for rugged applications, meeting all SAE J1455 and J1113 requirements for vehicular instrumentation as well as ISO 16750, 20653, 10605, 7637, and 11452
