Series 5400 Wheel Force Transducers (WFT)

April 2, 2010
PCB Piezotronics, Automotive Sensors Division

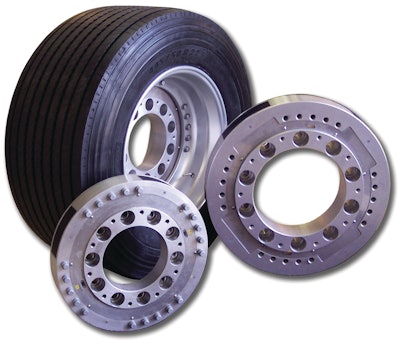

Series5400wheelforcetransducerswft 10058270
Pcb Logo

PCB Automotive Sensors Div. introduces Series 5400 wheel force transducers (WFT), for road load data acquisition applications.

  • Rugged one-piece units mount between the vehicle hub and the wheel rim
  • Deliver highly accurate measurements
  • Durable water-resistant package
  • Units available in a variety of sizes
  • Heavy truck units mount directly to the axle hub
  • Can be fitted with either slip ring or telemetry signal transmission
  • Come equipped with on-board signal conditioning and calibration circuitry for each channel of data measurement
  • Ideal for calibrating and adjusting biaxial wheel test machines; drive-file development of full vehicle and module test systems up to six degrees of freedom (DOF); and product development of stability control, suspension, and tires
  • High-strength aluminum, high-strength stainless steel, and titanium
  • Accept modified rims
  • One-piece, forged, high-strength aluminum rims also available for heavy truck applications
Request More Information
Fill out the form below to request more information about Series 5400 Wheel Force Transducers (WFT)
