HBM GEN7tA Transient Recorder and Data Acquisition System

The HBM GEN7ta transient recorder and data acquisition system acquires and streams data up to 400 MB/s.

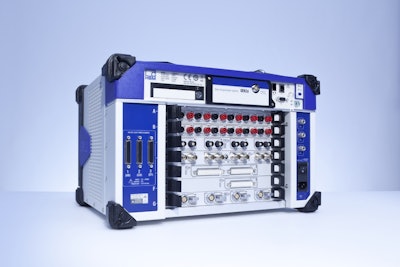

HBM GEN7tA 55677e8d6a267
Hbm 10056637

HBM Inc. introduces the HBM GEN7tA transient recorder and data acquisition system.

  • Acquires and streams data up to 400 MB/s, making it one of the fastest systems available
  • Well suited for applications that require hundreds of channels and high sample rates
  • Standard 1 Gbit Ethernet interface supports streaming recorded data directly to a PC at 100 MB/s
  • Optional 1 Gbit Optical Ethernet allows isolated control of mainframe as well as cable lengths up to 10 km (6.2 mi) while maintaining full streaming performance
  • 10 Gbit electrical or optical Ethernet option is available for higher streaming rates of 400 MB/s
  • Supports an optional removable Solid State Disk or can directly store recorded data on an external Network Attached Storage (NAS) device when more reliable or distributed storage of recorded data is required
  • Features seven slots for HBM Genesis data acquisition cards, allowing users to configure a system with up to 224 channels per unit
  • Can synchronize with other Genesis HighSpeed data acquisition systems by using Master-Slave option or with other data acquisition systems using Precision Time Protocol (PTP) for systems requiring more than 224 channels
  • Option for 19-inch rack mount allows easy integration into test bench applications
