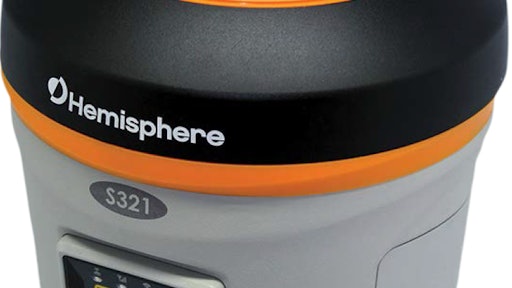

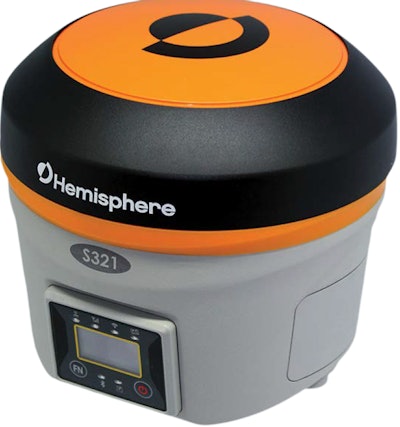

Hemisphere GNSS S321+ and C321+ GNSS Smart Antennas

Hemisphere's multi-GNSS S321+ and C321+ GNSS smart antennas support 394 channels and simultaneously track all satellite signals.

September 26, 2017
Hemisphere GNSS Inc.
Hemisphere Gnss

Hemisphere GNSS Inc. announces the release of its next-generation multi-frequency, multi-GNSS S321+ and C321+ GNSS smart antennas.

  • Powered by Eclipse P326 OEM board
  • Support 394 channels and simultaneously tracks all satellite signals including GPS, GLONASS, BeiDou, Galileo, and QZSS
  • Comes standard with two long-life lithium batteries providing up to 12 hours of operation
  • Batteries are hot-swappable, allowing them to be changed without stopping work
  • Combines Hemisphere’s Athena GNSS engine and Atlas L-band correction technologies with new webUI, offering high level of customer-friendly performance
  • Ruggedized desig for use in challenging environments
  • Meets IP67 standard requirements
  • Available in two versions, with 4G LTE optimized for either North American or international locations
  • Provides centimeter-level RTK
  • Athena GNSS excels in virtually every environment where high-accuracy GNSS receivers can be used
  • Ships pre-configured to test-drive corrections from Hemisphere’s Atlas L-band correction service
