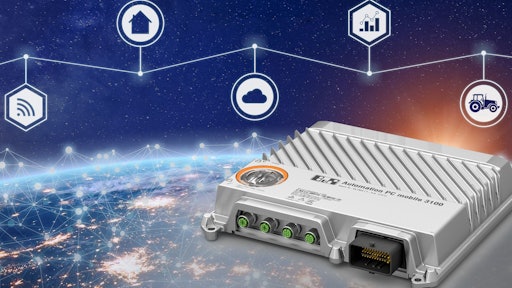

B&R PC with Intel Processor for Mobile Machinery

B&R's PC with Intel Processor enables implementation of semi or fully autonomous machine functions.

B&r P Cwith Intel Processor

B&R has added a powerful PC with an Intel processor to its portfolio of mobile machinery.

  • Includes IP69K protection
  • Specially designed for use in harsh environments
  • High performance suits smart machines that communicate with each other and the cloud
  • Features a 7th-generation Core i processor from Intel
  • Performance can be scaled from 2.2 GHz Celeron processor to 2.8 GHz Core i7
  • Offers up to 16 GB RAM and 480 GB of flash memory
  • Equipped with TPM module
  • Supports standard operating systems like Windows 10 IoT Enterprise and Linux
  • Enables implementation of semi or fully autonomous machine functions
  • Can be used as an edge controller, collecting large volumes of data from one or more mobile machines, preprocessing it and then sending it to higher-level systems or the cloud
  • Offers widely used OPC UA and MQTT protocols for machine-to-machine and machine-to-cloud communication
  • Allows data packets to be transferred reliably even in cases where network connection has low bandwidth or is intermittently unavailableest industrial environments
  • Features particularly robust construction
  • Resistant to shock, vibration, salt, UV light and oil
  • Completely sealed housing and fanless
  • Zero-maintenance design
  • Includes specially developed temperature management system that allows operation from -40-85 C (-40-185 F) surface temperature
  • Insensitive to voltage fluctuations
  • Broad standard voltage range from 9-32V
  • Integrated load dump protection compensates for peaks in supply voltage to protect electronics and ensure uninterrupted operation
  • Two internal slots allow modular expansion with additional communication interfaces
