HED CANect Telematics

HED's CANect Telematics solution allows users to collect, transmit and visualize vehicle data to increase productivity and decrease downtime.


HED Inc.'s complete CANect Telematics solution offers robust hardware, easy-to-use software development tools, and a complete back office portal that can be customized for a branded user experience.

  • Users can define what data is being collected, when it’s transmitted and how it’s visualized
  • Provides three hardware options to collect and transmit critical vehicle data via Wi-Fi, LTE or a combination of the two
  • Available with expanded coverage of LTE in Europe
  • P/N CL-T05 (Wi-Fi) model features concurrent 802.11 b/g/n
  • P/N CL-T16 (Cell) features 2G/3G/4G Cellular options

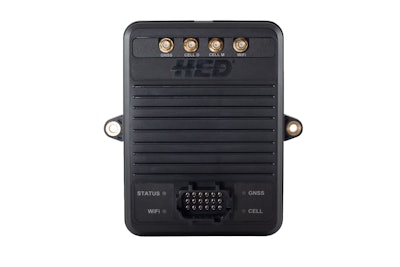

  • P/N CL-T17 (Wi-Fi & Cell) features concurrent 802.11 b/g/n and 2G/3G4G Cellular
  • Central processing architecture is composed of i.MX 6UltraLite Cortex-A7 Core (696MHz) Microprocessor, 128MB of DDR3 RAM, 4GB of eMMC Flash Memory
  • Processing architecture also includes (x2) CAN (ISO 11898) Ethernet (10/100BaseT) and USB 2.0 (Host/Client w/ OTG)
  • Powered by Linux and utilizes free, open source software development kit (SDK)
