LHP TP1 Telematics Unit

LHP Telematics' TP1 features North America 4G LTE Cat1 communications with 3G/2G fallback.

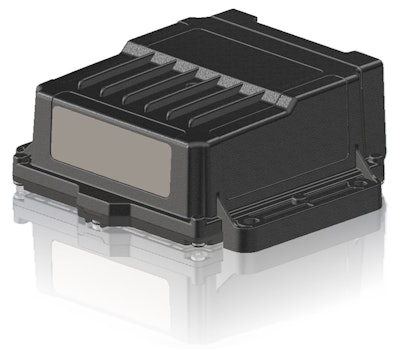

Tp1 Full Assy Rear 0926 Edited
LHP Telematics
Lhptelematcis Hi Res 11351647

LHP announces availability of its latest Telematics Platform 1 (TP1), a dual CAN ruggedized telematics hardware unit designed to support the needs of off-highway OEMs and their dealer networks.

  • Features North America 4G LTE Cat1 communications with 3G/2G fallback
  • Includes Wi-fi, Bluetooth and Ethernet as standard
  • Embedded application software supports J1939, CANOpen, MOD TCP and customer 11 bit/29 bit CAN protocols
  • Supports advanced triggers that chain logic together along with counting, timing, and calculating min/max/average values
  • Embedded applications can be updated over the air through LHP’s back-end services
  • Can be used to monitor CANbus, location and machine usage
  • Runs on ARM Cortex A7 and supports up to two CAN J1939 buses
  • IP67 rated and suitable for harsh environments
