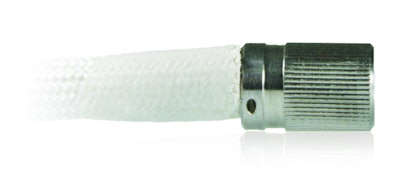

Endevco 3075M6-XXX Hardline Cable Assembly

Meggitt Sensing Systems, a Meggitt group division, has introduced the Endevco model 3075M6-XXX hardline cable assembly, offering high-reliability performance to 482 C (900 F) in support of a variety of high-temperature aerospace, automotive, industrial, power generation and test and measurement requirements.

• Hermetically sealed design offers high resistance to corrosion, humidity and other harsh environmental conditions
• Fiberglass jacket over a 304L stainless steel outer sheath prevents inadvertent signal grounding
• Withstands maximum temperatures of up to 900 C (1200 F)
• Both ends terminate into glass fired industry standard 10-32 UNF connectors
• Optional 10-32 to 10-32 in-line adaptor, sold separately, facilitates seamless conjoining of two assemblies into a single operating unit
• For direct compatibility with high-temperature single ended piezoelectric accelerometers
