EP36AO Epoxy

Master Bond introduces EP36AO, its heat-resistant epoxy which is serviceable over a temperature range of -80 F to 500 F.

Masterbond Ep36ao 10734215
Grey Red2line270x49 10342602

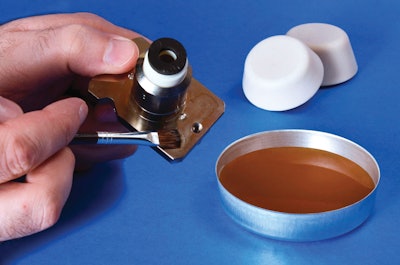

Formulated for electrical potting and encapsulation applications, Master Bond EP36AO combines high thermal conductivity with thermal stability. This flexible, heat-resistant epoxy has superior mechanical properties.

  • Serviceable over wide temperature range of -80 F to 500 F
  • Provides high performance in harsh conditions
  • Features solid electrical characteristics once cured
  • Offers volume resistivity of 2 to 3 x 1012 ohm-cm and thermal conductivity of 9 to 10 BTU·in/ft2·hr·F at 25 C, and dielectric strength of 400 volts/mil
  • Coefficient of thermal expansion exceeds 75 in/in x 10-6/C at 60 C
  • Tensile strength is over 2,000 psi
  • Adheres well to both metallic and non-metallic substrates
  • Features long-term chemical resistance to an array of organic and inorganic chemicals
  • One component system that does not require mixing
  • Offers convenience of flexible cure schedules
  • Typical gel time is 30 minutes at 180 F, with full cures attained in 2 to 2 1/2 hours at 300 F, which can be shortened further at higher temperatures
  • Retains liquidity as long as temperature does not exceeed 180 F
  • Has minimum shelf life of three months but can last as long as six months in its original unopened container
  • Available in pints, quarts, gallons and five gallon containers, and is now also available in 30 gram cookies
