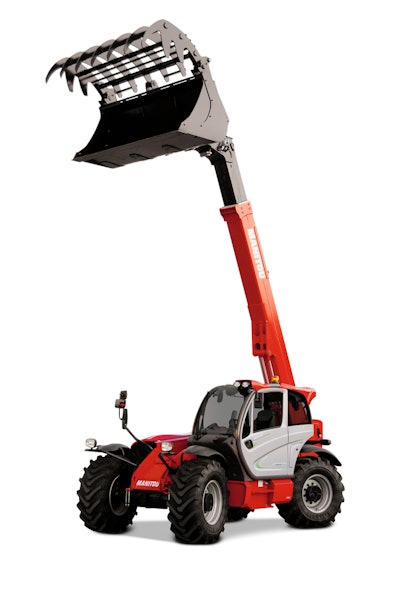

Manitou launches new MLT 960 Telescopic Loader

More capacity, lift height and horsepower combined than any other telescopic loader in North America

Bnas

Manitou announces its MLT 960 Telescopic Loader for the North American market. With a rated operating capacity of 13,200 lbs. (6,000 kg) and a maximum lift height of 29 ft. 6 in. (9 m), the MLT 960 fills the gap between the MLT Series Ag/Multi-Purpose Telescopic Handlers and the MHT Series Heavy Capacity Telescopic Handlers. In addition to high capacity agricultural applications, the MLT 960 excels in demolition and recycling and provides a unique alternative to large wheel loaders.

Technical Specifications:

  • Maximum Lift Capacity: 13,200 lbs. (6,000 kg)
  • Maximum Lift Height: 29 ft. 6 in. (9 m)
  • Capacity at Maximum Lift Height: 7,700 lbs. (3,500 kg)
  • Turning Radius: 13 ft. 1 in. (3.98 m)
  • Power: 141 hp (104 kW)
  • Transmission Type: Continuously Variable (CVT
  • Maximum Travel Speed: 40 km/hr (25 mph)

Features:

With a maximum capacity of 13,200 lbs. (6,000 kg) and a maximum lift height of 29 ft. 6 (9 m), the MLT 960 telescopic loader is the ideal choice when you need a combination of loading power and high lift height. Specializing in material handling tasks, this unit excels in heavy-duty work for agriculture, waste management and bio-gas applications. The MLT 960 is equipped with a 141 hp (104 kW) Interim Tier IV John Deere diesel engine.

The Continuously Variable Transmission (CVT) gearbox provides smooth drive operation while maintaining maximum tractive effort at any speed. The transmission control reacts to the demand on the machine to provide the correct torque and speed automatically without interruption. By enabling the engine to run at its most efficient speed, the CVT system provides better fuel economy than other transmission systems. Reinforced Dana axles ensure no drop in torque from 0 – 25 mph (40 km/hr). Additionally, an inching pedal has been implemented into the MLT 960 to assist in managing forward movement and hydraulic-powered attachment speed separate from the vehicle engine speed.

Load sensing hydraulics are made possible by a variable piston pump, which delivers more efficiency and less heat than a standard gear pump. Standard auxiliary hydraulics bring 3900 psi (270 bar) of pressure and a flow rate of 47.7 gpm (180 L/min.)

The new, Manitou-patented, Duplex boom provides 360 degrees of visibility due to its low mount position. High quality steel results in a stronger overall design. A reduction in overall weight of the internal components increases lifting capacities with a minimal increase in machine size.

Comfort is key for operators spending much of their day in the cab of the machine. For greater operator efficiency, switches and controls are grouped according to function. Drive, boom and hydraulic functions are all controlled by the JSM (joystick, switch & move) control, leaving the other hand free to
operate the steering wheel. A highly-visible, side-mounted interactive dashboard digitally displays the hour meter, speed, travel direction and maintenance reminders.

With its large lift capacity and high lift height, the MLT 960 telescopic loader provides a unique alternative to large wheel loaders. The MLT 960 provides a fixed load capacity while turning, extended forward and vertical reach, and extra bucket curl over large wheel loader models. The unit also provides excellent versatility. The quick-fit mounting system connects easily to a wide range of Manitou-tested attachments. A hydraulic lock option provides for fast attachment changes without leaving the operator’s seat. A wide variety of approved attachments include forks, rotating carriages, buckets (including a 5 cu.yd. bucket), grapples, bale handlers, and hay handlers.

Additional comfort is gained by the use of cushioned stops on the lift cylinders. This creates smoother operation when lowering and extending the boom. The optional Comfort Ride Control (CRC) boom suspension system minimizes the loss of material when traveling.

Extra attention was paid to the ease of service and maintenance for the all-new MLT 960 telescopic handler. A large engine cover is hinged and equipped with gas springs to assist in the lifting and holding in place during servicing. The engine, cooling system and daily maintenance points are easily accessible
through the large engine cover. Grease fittings are centralized, making regular axle lubrication easy.

The Manitou MLT 960 Telescopic Handler is positioned in the North American market to meet the needs of users who require a combination of heavy-duty loading/unloading, lift height and forward reach. Its sturdy, reliable build offers intuitive features that are sought out by the agriculture, environment, cooperative, waste management and bio-gas sectors.
