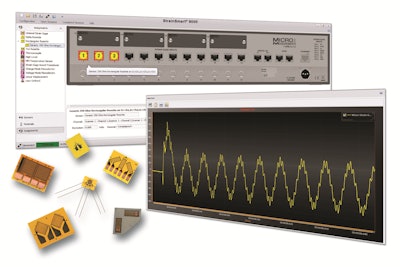

Micro-Measurements StrainSmart 9000 Dynamic Data Acquisition Software

Micro-Measurements' StrainSmart 9000 software supports virtually any dynamic data acquisition task in which simultaneous sampling of up to 48 channels, at speeds of up to 50,000 samples per second, is required.

Micro Measurements Introduces Strain Smart 9000 Data Acquisition Software

The Micro-Measurements brand of Vishay Precision Group Inc. announces the global market launch of its StrainSmart 9000 dynamic data acquisition software.

  • Allows for simultaneous sampling of up to 48 channels, at speeds of up to 50,000 samples per second
  • Fast, easy setup and minimal-to-no downtime
  • Performs accurate, real-time data recording, analysis, display and export within minutes of software setup
  • One-touch autobalance and post-processing data filtering
  • Designed for ease of use by students, engineers and scientists alike
  • Provides intuitive, complete turnkey Windows-based software platform for accurate, dynamic data acquisition, reduction, download, and display
  • Features automatic error checking and calibration
  • “Verify” tool at setup allows end-user to perform early error and omission pre-arm checks
  • Bridge excitation functions may be easily disabled for complete pre-test noise evaluation scan
  • Visual representations provide instant access to hardware wiring and configuration validation data, with choice of local or remote real-time display viewing
  • Channel settings performed automatically from sensor properties, largely without manual intervention
  • Direct calculations of engineering units, including strain gage rosette principal and failure criteria stresses, along with input shunt calibration and user-defined assignments, are possible
  • Sensor-specific input assignments of strain gages, thermocouples, and other sensing types offer ease of mathematical data manipulation
  • Individual strain gage engineering data entry is also possible, with automatic error corrections for transverse sensitivity, Wheatstone bridge nonlinearity, and lead wire resistance
  • Parameters, such as thermal output, gage factor variation with temperature, and thermal coefficient of gage factor, are easily corrected via assignment of temperature sensor
  • Unique signal visualization algorithms provide in-depth insights, including full graphical representations of channel assignments, for reduced potential connection errors
  • Individual test setups and common parameters may be stored and saved for later reuse
  • Larger data sets may be exported to multiple files automatically, as either ASCII text files, .csv files, or Microsoft Excel documents
  • Designed for seamless and direct compatibility with Micro-Measurements System 9000 data acquisition system
  • Can be used with Micro-Measurements and other industry strain gages (strain gauges), strain gage-based transducers, thermocouples, temperature sensors, high-level voltage sensors, and piezoelectric sensors
  • Typical applications include experimental stress analysis; electronics drop testing; printed circuit board (PCB) and finished product component reliability and subassembly testing; engine vibration monitoring; and fatigue life testing
  • Supports virtually any dynamic data acquisition task in which simultaneous sampling of up to 48 channels, at speeds of up to 50,000 samples per second, is required
