dSPACE V2X Solution

dSPACE announces the release of its V2X Solution which provides access to Vehicle-to-X communication signals for the development and testing of V2X applications.

dSPACE PR Image V2X Solution 4Print RGB 151210 56699d88551e1
Dspace 10055308

dSPACE announces the launch of its V2X Solution to support the development and testing of Vehicle-to-X applications which enable the exchange of data between vehicles, and between vehicles and the infrastructure.

  • Provides easy access to Vehicle-to-X (V2X) WLAN ad-hoc communication according to IEEE 802.11p
  • Enables graphical analysis of V2X-relevant data in dSPACE ControlDesk Next Generation
  • Helps reduce workload when developing and testing V2X applications by removing need to implement specific communication protocols and software layers

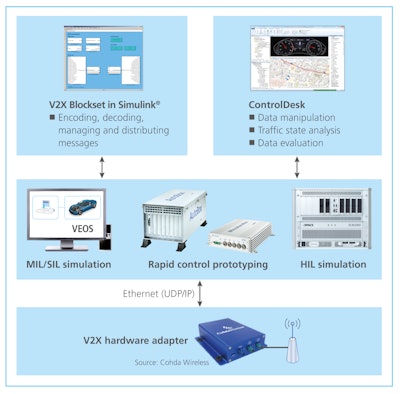

  • V2X Blockset for Simulink is a central component which provides easy access to V2X communication during model-in-the-loop (MIL) simulation, rapid control prototyping (RCP), software-in-the-loop (SIL) and hardware-in-the-loop (HIL) simulation
  • Engineers can connect applications directly to appropriate communication blocks, in only a few steps, via signal vectors to access all or previously selected V2X message contents
  • Protocols and software layers that enable communication with other V2X participants according to the European V2X standard are included
  • Software layers comprise functionality for encoding and decoding V2X messages, and also Ethernet (UDP/IP) communication interface to a V2X hardware adapter, such as the MK5-OBU Onboard-Unit from Cohda Wireless
  • Direct access to V2X signals within Simulink model simplifies data manipulation necessary for robustness tests
  • Offers dedicated blocks for position and time data by encoding and decoding Global Navigation Satellite System (GNSS) data according to the National Marine Electronics Association (NMEA) 0183 standard
  • Extends dSPACE ControlDesk with a dedicated map instrument, which is continuously updated with new information from the V2X Blockset for easy data analysis and plausibility checks
  • Map instrument displays contents that are available to V2X applications, such as a vehicle’s position, velocity, driving direction and classification of individual traffic participants as well as other V2X-specific information
