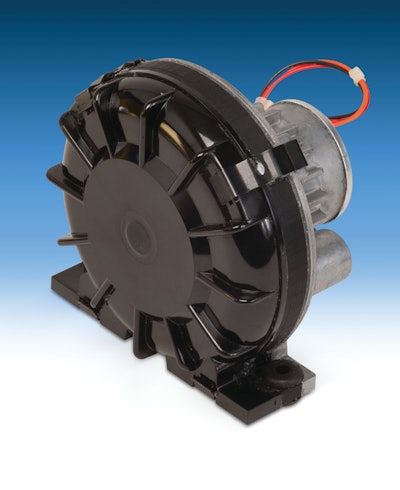

ROTRON Minispiral Extra Flow/Extra Wide Regenerative Blower

The advanced design of the ROTRON Minispiral 12V HDC Extra Flow/Extra Wide Regenerative Blower from AMETEK Inc. combines a high-performance DC brushless motor/blower with a state-of-the-art electronics package to deliver air flows up to 12 standard cubic feet per minute (SCFM).

• Delivers air pressures up to 26 in. of water gauge (IWG) from a 4-inch diameter package size
• Compact and quiet, measuring 4.18 in. by 1.83 in. (106.2 x 46.5 mm) and weighing less than 2 lbs. (0.86 kg)
• Features glass-filled phenolic molded blower and impeller cover, and die-cast aluminum motor housing
• Integrated control electronics provide variable air flow control
• Stainless steel, permanently lubricated bearings provide brushless DC motor with up to 30,000 hours of bearing life
• Brushless DC motor technology is virtually maintenance free
• Advanced integrated electronics package allows customization for specific application requirements
• Optional features include application-specific voltages, variable input voltages and low-voltage versions, and built-in speed and pressure sensors
