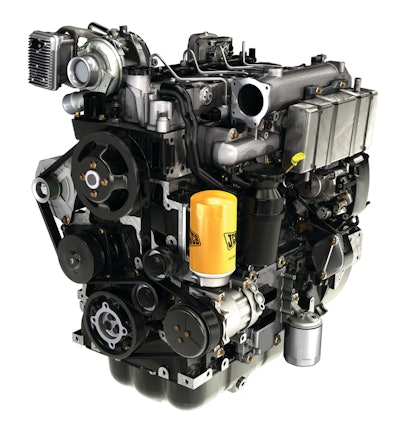

Ecomax Tier 4 Interim Engine

JCB introduces its Ecomax Tier 4 Interim engine which features an external EGR.

May 18, 2012

JCB Power Systems Ltd.

Jcb Ecomaxt401 10716709

Power Systems 4col Horizontal

JCB has launched its Ecomax Tier 4 Engine, which uses a high efficiency combustion system to meet emissions regulations.

Uses base engine configuration
Meets EU Stage IIIB/EPA Tier 4 Interim emissions regulations
Features external EGR
Includes variable geometery turbocharger
55 kW model is a 4.4L TCA Electronic Common Rail offering 400 Nm torque
68 kW to 93 kW model features 4.4L TCA Electronic Common Rail and 440 Nm to 550 Nm of torque
108 kW to 129 kW model is a 4.8L TCA Electronic Common Rail with 550 Nm to 750 Nm of torque

Fill out the form below to request more information about Ecomax Tier 4 Interim Engine
