854F-E34TA Tier 4 Final Engine

Perkins introduces its 854F-E34TA engine, which meets Stage IV/Tier 4 Final emissions regulations using specially optimized SCR technology.

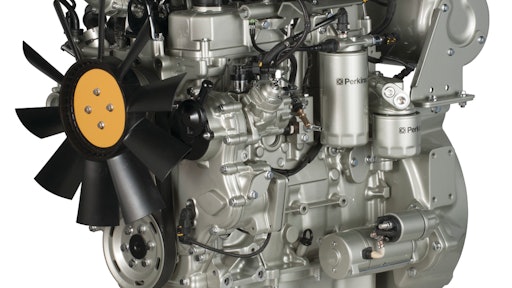

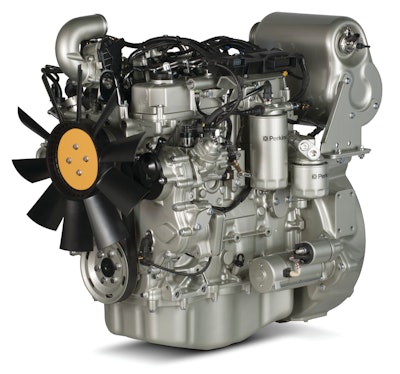

Perkins 854f E34ta View1 10931895
Perkinslo 10108214

Improved performance, installation flexibility and dependability are just some of the benefits delivered to customers by the Perkins 854F-E34TA engine.

  • Meets EU Stage IV and U.S EPA Tier 4 Final emissions standards above 56 kW (75 hp)
  • Compact, four cylinder, 3.4 liter design
  • Incorporates specially optimized SCR technology
  • SCR packaged separately from DOC module, enabling it to be mounted in either a horizontal or vertical position for greater installation flexibility
  • Elimination of DPF, to further save space, is enabled by use of a four-valve cylinder head and increasing common rail fuel pressure to 1,800 bar
  • Performance boosted to 90 kW (121 hp) with a maximum torque of 460 Nm due to single stage turbo with smart wastegate
  • Features rated speed between 2,200 and 2,500 rpm
  • Provides 8% improvement in specific fuel consumption (SFC)
  • Heat rejection remains similar to its predecessor, meaning no major changes to the size of the cooling pack, helping to maintain compact dimensions
  • Use of poly-vee belts and hydraulic lash adjustment reduce maintenance
