Hatz 3H50T Engine

The Hatz 3H50T engine is capable of providing the horsepower and torque necessary to replace engines up to 50 hp, allowing OEMs to downsize their engine if desired.

March 25, 2020
Hatz Diesel

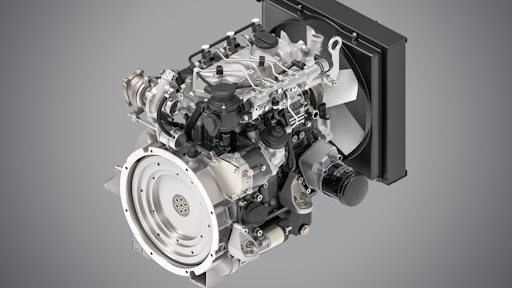

180110 Mh072606 3 H50 T Prototype Med (1)
Hatz Thumb 10933084

Hatz announces the release of its compactly designed 3H50T model engine, part of its H Series of engines.

  • Offers 24.6 hp (18.4 kW)
  • Produces 96 lb.-ft. (130 Nm) of torque
  • Achieves EPA Tier 4 Final and EU Stage V without any exhaust emission aftertreatment
  • Capable of replacing higher power class engines up to 50 hp (37 kW)
  • Features easy maintenance and quiet operation
  • Available as an open power unit (OPU) in which cooler and intercooler are mounted free of vibration
  • Equipped with two valves per cylinder, which achieves high level of efficiency, mechanical robustness and functional simplicity
  • iHACS Technology (intelligent Hatz advances combustion strategy) featuring optimized combustion chamber geometry, Bosch injection technology, lowest possible friction and a maximum boost pressure of 24.6 psi (1.7 bar) provide lower fuel consumption and good exhaust gas values



Request More Information
Fill out the form below to request more information about Hatz 3H50T Engine
