Kohler KSD Series Engines

The KSD Series engines offer a new design below 19 kW that complies with all global emissions standards and fuels while providing easy integration for OEMs.

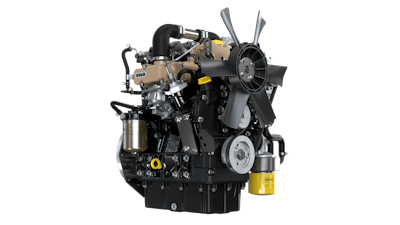

Kohler Ksd 1403 Tc Quarter

The Kohler KSD (Kohler Small Displacement) Series engine family offers a below-19 kW (25 hp) solution which complies with all global emissions standards and fuels.

  • Compatible with various machine types
  • Can be easily integrated with more complex electronic systems of ever-evolving machines
  • Versatile design which allows integration without modifying or redeveloping machine
  • Allows customized settings for any duty cycle and the ability to exchange data with few physical connections
  • Range currently includes three engine models - KSD 1403NA (Naturally aspirated), KSD 1403TC (Turbocharged) and KSD 1403TCA (Turbocharged with aftercooler)
  • Additional modes expected in the near future
  • Features high low-end torque of 95 Nm (70.1 lb.-ft.) at 1,000 rpm
  • Provides peak torque at low speed of 120 Nm (88.5 lb.-ft.) at 1,400 rpm
  • Peak power output of 18.4 kW (24.7 hp) at 1,800 rpm
  • Multi-fuel solution enables use with diesel, gasoline and propane to meet varying customer requirements
  • Easily fits into existing telematic solutions
  • Electronically controlled but as simple to use as mechanical engines
  • Fuel system allows precise fuel metering and excellent load response
  • Use of durable components enable use in heavy-duty applications
  • Dual side service and full flexibility for fan position fits wide range of machines
  • Electronic controls maintain high performance at high altitude
  • Electronic control allows for integration of CANbus communication, TSC1 control, tailored error messages and remote diagnostics
  • Helps optimize fuel consumption by controlling machine hydraulics and engine load and speed
  • Enables prognostic, diagnostic, geolocation, remote monitoring and switchability for genset application, and offer a service interval of up to 500 hours, for both oil and fuel filters
  • Features state-of-the-art indirect injection system but has specific electronic management typical of direct injection
  • engines
  • Engine performance is maximized in every operating condition and environment
  • Indirect injection system offers limited speed droop as well as isochronous control if required, like in bigger displacement common-rail engines
  • Low-end torque allows operators to run equipment at lower rpm to save fuel
  • Electronic injection system results in no visible black smoke;
  • Minimizes noise and vibrations to ensure operator comfort
  • Piston ring design, dedicated in-house honing machining process, and specific crankcase ventilation system aids clean low oil consumption and avoids oil dilution as well as heavy soot oil
  • Includes Kohler Arctic Boost starter motor to start the engine easily when dealing with high parasitics in cold conditions

Kohler Ksd 1403 Tc FrontKohler
