Doosan has added the DX225LC-5 and DX235LCR-5 crawler excavators to its Tier 4-compliant lineup, featuring improved performance, operator-focused comfort, fuel economy and jobsite durability. Both the DX225LC-5 and DX235LCR-5 Tier 4-compliant machines replace the Tier 4 Interim (T4i) DX225LC-3 and Tier 3 DX235LCR models.

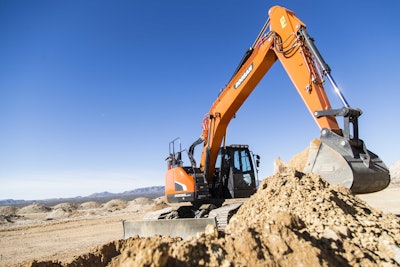

With a near-zero reduced tail swing, the DX235LCR-5 can work close to buildings and in confined areas without sacrificing performance. This machine is designed for long life with an extra-sturdy frame and reinforced superstructure. The DX235LCR-5 is ideal for operating in congested jobsites such as roadways and rail lines without blocking traffic in the adjacent lane or track, and it minimizes the potential for damage when working close to buildings or walls.
The DX225LC-5 is available in a super-long-reach (SLR) configuration designed for increased reach and dig depth. The SLR model has more than 20 ft. of digging reach than the standard configuration and can dig to a depth of 38 ft. 2 in. The SLR configuration is popular for dredging applications in rivers and lakes, or for building seawalls along a coast.
Smart Power Control (SPC)
A new selectable feature, Smart Power Control (SPC), consists of two systems — Variable Speed Control and Pump Torque Control — that work together to improve machine efficiency while maintaining productivity and reducing fuel consumption. The engine control unit (ECU) automatically manages SPC when SPC is engaged. Each of the four power modes will function with SPC engaged or disengaged; however, SPC can be active only in the Digging work mode.
- Variable Speed Control: Reduces engine rpm during low workload requirements, such as during the swing portion of a dig cycle. This reduces the total energy required to perform a task and improves fuel efficiency by up to 3 to 7%.
- Pump Torque Control: Efficiently matches hydraulic pump torque and engine response to the task, preventing engine overload and excess fuel consumption, improving efficiency.
To help save valuable diesel fuel, Doosan added auto shutdown to its excavators to help owners save fuel during non-working conditions. Operators can configure the idle time from 3 to 60 minutes. When enabled, the feature will shut down the excavator’s engine when the preset idle time is met. This is particularly helpful in California where state regulations require idling for only 5 minutes for off-highway machines.
Display enhancements
An improved 7-inch LCD screen allows operators to continue monitoring the excavator parameters while viewing the rearview or side-view camera image. Critical machine data appears next to the camera view. With an optional side camera, a split screen allows both camera displays to be viewed at once. New additions to the monitor include the diesel exhaust fluid (DEF) gauge and improved fuel efficiency.
New machine updates
In addition to auto shutdown and LCD screen updates, the new Doosan DX225LC-5 and DX235LCR-5 crawler excavators have the following updates:
- Improved anti-skid plates: for easier engine access for machine maintenance
- Emergency engine stop: relocated for easier operator access
- Improved serviceability: allows for easier access to components and less time for maintenance
- New front window design: provides good visibility to the work area
- Backfill blade package: for the ability to smoothly grade or backfill material (NEW to the DX235LCR-5)
Options
Factory-installed options for the new Doosan crawler excavators include the following:
- Straight travel pedal, which allows the operator to travel in a straight line more easily
- Two-way auxiliary hydraulic pedal (in addition to joystick control)
- Cab guarding for special applications
- Additional work lamps
- Rotate circuit hydraulic piping
- Intelligent floating boom (not available on the DX235LCR-5)
Tier 4 solution
The DX225LC-5 and DX235LCR-5 complies with Tier 4 emission standards with modified diesel engines and aftertreatment technologies. The engines are optimized for use with a high-pressure common-rail (HPCR) fuel delivery system and a cooled exhaust gas recirculation (CEGR) system. It utilizes a diesel oxidation catalyst (DOC) to reduce particulate matter (PM) and selective catalyst reduction (SCR) aftertreatment to reduce nitrogen oxides (NOx). Additionally, a variety of aftertreatment systems have been implemented as part of the Tier 4 compliance, such as diesel exhaust fluid (DEF), which is used with SCR technology.
Doosan Telematics
Doosan excavators come with a standard three-year subscription to Doosan Telematics, which allows equipment owners and fleet managers to remotely monitor machine location, hours, fuel usage, engine idle versus work time and error codes, as well as engine and hydraulic temperatures. Machines can be monitored via an online Doosan Telematics account. In addition, Doosan dealers can provide improved customer support using the system by responding to machine warning messages and alerts, troubleshooting machine issues, and then sending a field service vehicle to help with repairs and deliver the proper parts.
