FA Series Aluminum Couplings

FA series couplings from Parker provide lightweight corrosion resistance and simple push-to-connect operation.

Faseriescouplings 10254225
Parker Logo Big 10933185

FA Series couplings from the Quick Coupling Division of Parker Hannifin Corporation are designed to use the best features of Parker’s non-spill FS and FEM Series couplings combined with a lightweight, corrosion resistant aluminum construction that’s up to 60% lighter than comparable steel couplings.

  • Push-to-connect operation is quick and saves time when mating fluid lines
  • Non-spill feature eliminates fluid spillage and minimizes air inclusion when connecting or disconnecting
  • Modular two-piece design allows for a wide variety of end configurations
  • Flush face valving and smooth flow path with low pressure drop
  • Suitable for both pressure and vacuum applications
  • Operating pressure rating up to 1,000 psi
  • 3 to 50 gpm rated flows
  • Hard coat, anodized finish provides scratch- and wear-resistant surface

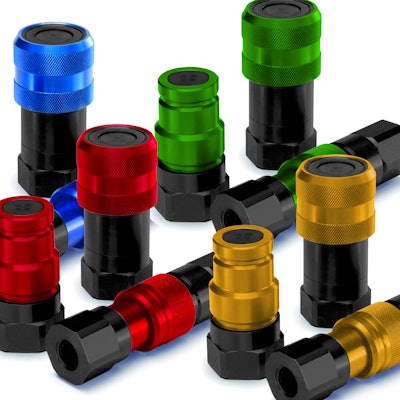

  • Color coding options visually identify fluid lines to prevent cross connection
  • Flat face and sealed sleeve cavity prevents dirt from interfering with coupling operation
  • Body sizes range from 1/4 in. to 1 in.
