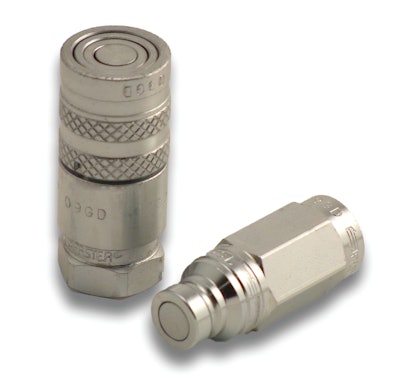

FFH Flat-Face Couplings

FASTER introduces its high-performance, flat-face couplings, the FFH series, which offer durability and performance.

Ffh 10314366
Thinkfaster 10278171

FASTER has recently developed the FFH flat-face series, featuring high robustness and reliability.

  • Offers higher performance than traditional FFI couplings
  • Exceeds performance specs identified by ISO 16028 regulations
  • Features working pressure of 35MPa and improved flow rates
  • Passes severe internal validation tests, such as 1,000,000 cycles impulse tests (at 133% of working pressure) and burst tests at 140MPa
  • Available in 1/8 to 3/8 in. and 1/2 to 3/4 in. sizes
  • Zinc-nickel surface treatment provides corrosion resistance (up to 720/1,000 hours in salt spray chamber without red salts), high-temperature resistance and ductility
