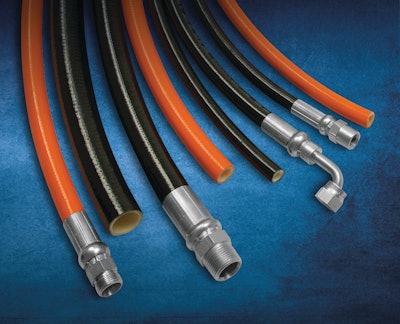

Thermoplastic Hose and Couplings

Kurt Hydraulics’ full line of thermoplastic hose and couplings are well suited for a vast range of applications.

• Easily flexes during operation
• Complete line features SAE 100 R7, R8 and R18 thermoplastic hydraulics hoses
• SAE R100 R7 is a nylon hose suited for medium pressure hydraulic systems, such as machine tool applications and lift equipment
• Constructed of thermoplastic nylon inner tube, synthetic textile braiding as reinforcement and urethane cover
• Rated between 1,000 and 3,000 psi working pressure, and 4000 and 12,000 psi minimum burst pressure
• Available in eight sizes between 1/8 in. I.D. and 1 in. I.D., and is also available in twin line hoses
• SAE R100 R18 and SAE R100 R8 thermoplastic nylon hoses are suited for high pressure hydraulic systems, and for use in construction, agricultural, off-highway vehicle, and plant maintenance equipment
• Constructed of thermoplastic nylon inner tube, unique internal reinforcements and black urethane cover
• R18 hydraulic hose is rated at 3,000 psi working pressure, and the R8 is rated between 3,500 and 5,000 psi working pressure
• R18 hose is available in four sizes from 1/4 to 1/2 in. I.D, and the R8 hose is available in four sizes from 3/16 to 1/2 in. I.D., and is also available in twin line hoses
• R7, R18 and R8 hoses are available in nonconductive versions for use in applications that require electrical component isolation
• Working temperature range for all hoses is -40 to 212 F
• Urethane covering is abrasion, ozone and weather resistant
• Smooth, glossy urethane cover on also provides visual finish
• Specialty, multi-hose setups available
• R7 coupling available for use with thermoplastic hoses, and includes both crimped and swaged varieties
