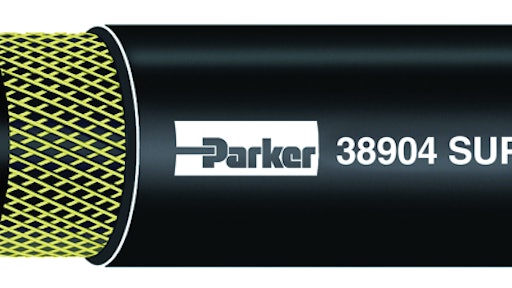

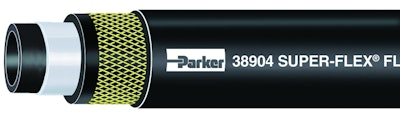

Series 389 SUPER-FLEX FL-7 Fuel Line Hose

The Parker Series 389 SUPER-FLEX FL-7 Fuel Line/Vapor Emission Hose meets SAE and CARB requirements.

Series389fuellinehose 10254545
Parker Logo Big 10933185

The Series 389 SUPER-FLEX FL-7 fuel line hose from Parker Hannifin Corporation meets SAE J30R7 / J30R14T2 and CARB (California Air Resource Board) SORE (Small Off-Road Engine) requirements and is designed for flexibility, easy installation and efficient cost-saving performance.

  • Lightweight and flexible for routing in small engines
  • Nitrile tube provides resistance to refined fuels such as diesel, gasoline, biodiesel (to B20) and ethanol (to E85)
  • Thermoplastic THV barrier resists permeation of volatile organic compounds and surpasses stringent EPA and CARB permeation requirements of 15 g/m2/day
  • Utilizes multiple plies of tough, heat-resistant aramid reinforcement to provide strength and secure coupling retention
  • Cover resists abrasion, heat, oil and ozone to provide protection in harsh applications
  • Rates to 257 F (125 C) operating temperature and 50 psi (3.4 bar) maximum working pressure
  • Available in 3/16 in., 1/4 in., 5/16 in., 3/8 in., 1/2 in., 5/8 in. and 3/4 in. I.D.
