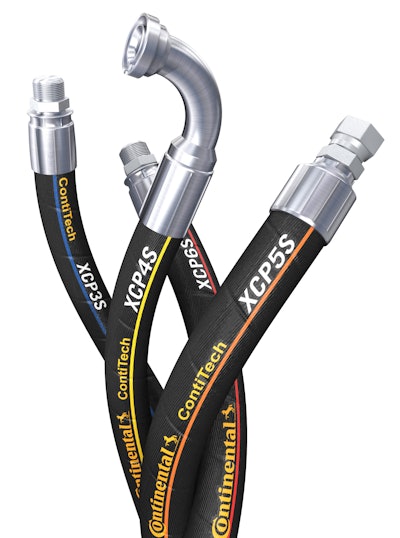

ContiTech Constant Pressure Spiral Hydraulic Hoses

Introduced at IFPE 2017, the ContiTech Constant Pressure Spiral Hydraulic hose line features an abrasion-resistant cover and reduced bend radius.

Constant Pressure Bundle V8 2 58d96ec44821f
Contitechlogo 11173600

ContiTech has introduced the ContiTech Constant Pressure Spiral Hydraulic hose for North American markets.

  • Features various characteristics crucial to operating under high-pressure hydraulic applications
  • Provides reduced bend radius up to 1/2 (through 1 in. I.D.) that of SAE conventional spiral hose standards
  • Includes abrasion-resistant coverĀ
  • Meets United States Mining Safety and Health Administration (USMSHA) flame resistance designation
  • Excellent impulse performance and flexibility
  • Meets SAE 100R19 and ISO 11237 standards
  • Inner tube is constructed of nitrile rubber and is reinforced with four or six alternating layers of spiraled high-tensile steel wire
  • Outer cover is manufactured with Extended Life extra abrasion, and oil- and weather-resistant synthetic rubber
  • Less-bulky inner tube and outer wall construction requires less force to bend for more manageable routing process
Request More Information
Fill out the form below to request more information about ContiTech Constant Pressure Spiral Hydraulic Hoses
