Webtec FlowHUB ViscoCorrect

The FlowHUB ViscoCorrect can be set up for use on water, biodegradable (water based) fluids as well as conventional hydraulic and lubrication oils.

Flow Hub Visco Correct
Webtec Logo Hi Res 5930b694cc87b

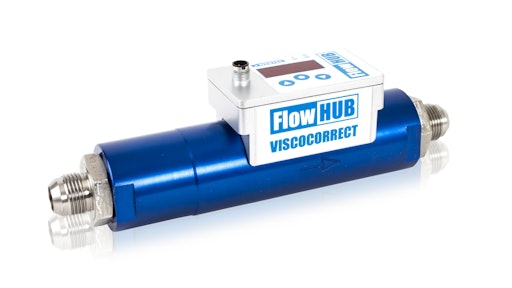

Webtec unveils its FlowHUB ViscoCorrect, a hydraulic flow monitoring device with integral temperature measurement and large digital display, now for use on oils, water and water-based fluids.

  • Can be set up easily for use on water, biodegradable (water based) fluids as well as conventional hydraulic and lubrication oils at the touch of a button
  • Well suited for condition monitoring, test stands and closed loop control applications in both fluid power and lubrication systems
  • Measures and displays flow and temperature readings, as well as switch and transmit flow values
  • Provides multiple capabilities in single device, reducing costs and wiring requirements
  • Alarms and shut-offs can be triggered, and real-time values transmitted to PLC using just one unit, instead of up to six discreet hydraulic components which might have been required conventionally
  • Available in two ranges, 8 and 64 gpm (30.3 and 242.3 lpm)
  • Suitable for water or hydraulic oil up to a pressure of 6,000 psi (413.7 bar) and fluid temperature of 41-194 F (5-90 C)
  • Two programmable switched outputs available
  • Designed for permanent installation with few wearing parts to ensure long operating life
  • Can be mounted in any orientation
  • No lengths of straight tube are needed since unit has built-in flow conditioning
  • Accuracy is better than 5%, while repeatability is better than 1%
  • Response time is almost immediate at 50 ms
  • Compact yet rugged design
  • Protection rating of IP64
  • Supplied with complete fitted adaptors (BSP or JIC male)
  • Device allows unmeasured reverse flow if needed
  • Standard model configurations are available, as are custom configurations
