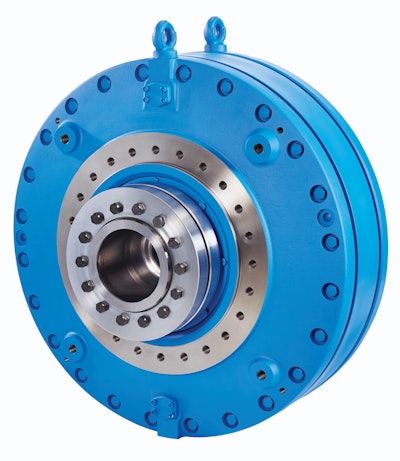

Hydre-MAC Direct Drive Radial Piston Motor

Eaton introduces its Hydre-MAC direct drive radial piston motor which uses less energy to provide more power when needed in variable speed applications.

Eaton Hydremacdirectdrivepisto 11316287
Logo Eaton 10933210

Power management company Eaton announces the launch of Hydre-MAC, a low-speed, high torque (LSHT) direct drive, radial piston motor – featuring a cam lobe design – for variable speed applications that uses less energy to deliver more power when needed.

  • Offers class-leading low speed performance
  • Features MacTaggart Scott heavy-duty motor design
  • Provides efficient, reliable and serviceable power
  • Increases component life with two inlet and outlet ports reducing pressure drops at high power
  • Generates less overall heat overall
  • Symmetrical 18 piston/roller assembly design eliminates piston side-loading and reduces wear and tear
  • Drop-in replacement capabilities reduce switching costs by eliminating need to replace the machine shaft and torque arm
  • Repairable wear surfaces, including shaft seals, wear rings, piston seals and bearing pads, can be replaced on-site
  • Currently available in 20,160 cubic centimeters per revolution (ccr) (1,231 cubic inches per revolution [cir]) and 25,320 ccr (1,546 cir) displacements
