Lincoln Pump P 502 Lubricant Supply Pump

SKF introduces its latest lubricant supply pump, the Lincoln pump P 502, which is able to provide two lubrication points simultaneously.

130415 Skf P502 10932620

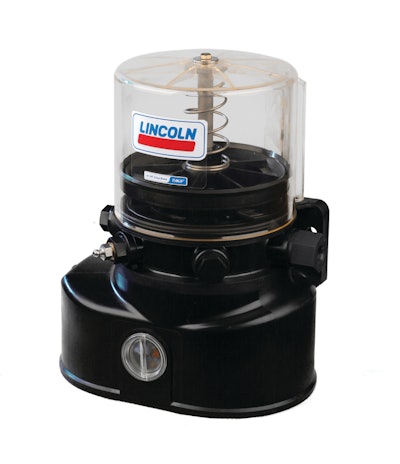

SKF Lincoln pump P 502 is a simple, small and compact lubricant supply pump with a 1-liter reservoir suitable for grease or oil.

  • Can be used to provide in progressive centralized lubrication systems a maximum of two lubrication points simultaneously or 12 lubrication points progressively with lubricant
  • Uses 12 or 24V DC power supply
  • Features option of a low level indication (follower plate)
  • Electrical connection to the pump can be made using a square plug, bayonet plug or M12 plug
  • Integrated control unit connects to an external control unit or programmable logic controller, or an integrated control printed circuit board for pause time and lubrication time adjustments
  • Allows use of one or two pump elements to provide the desired lubricant volumes at a temperature range from -25 to 70 C
  • External pressure reducing valve allows pump and downstream system to be driven at a maximum operating pressure of 270 bar
  • Supplies greases up to NLGI class 2 or oils of at least 40 N/mm² (cST)
  • Features rotary switch technology and settings for pause-time and lubrication-time
  • Allows triggering of additional lubrication cycles via controller or an illuminated external pushbutton
  • Well suited for use in commercial vehicles, smaller construction machines, stackers, agricultural machines, and other industrial applications
