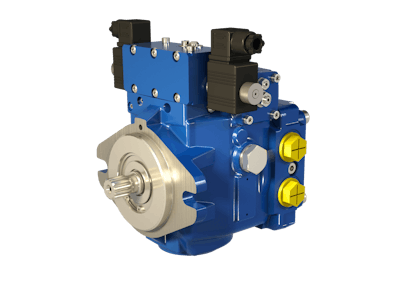

Poclain Hydraulics introduces its PM20 medium-duty pump. The size 20 pump borrows its design from the PMV0 and PM10, bridging the gap between the PM10 and the PM30.
- Highly compact 28 cc pump
- Based on a trunnion design
- Features same displacement as PM30 in a smaller package, suiting small- to medium-sized mobile equipment applications
- Auxiliary mounting pad can interface with a gear pump and power implements such as a conveyor belt
- Axial length of 165 mm (6.5 in.) – a little under 200 mm (7.9 in.) with a charge pump - fits under seats or short bonnets
- Highly customizable
- Valve block can be flanged to the pump cover for a more responsive system
- Valve plate is also modifiable to produce desired driving behavior, from responsive to comfortable
- Wide range of controls allow for precise control of the transmission, resulting in more productivity for end-users
- Several options available including servo-mechanical with feedback, hydraulic servo-control, electric proportional servo with or without feedback, charge pump, flushing valve
