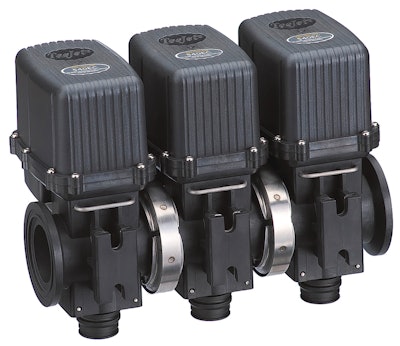

TeeJet Technologies announces the release of its 540 Series manifold for sprayer boom shutoff. The gear driven, plunger-style design provides long-term reliability in a more compact size.
- Delivers improved wear life when working with abrasive solutions
- Generates strong closing force for positive shutoff
- Side inlet/bottom outlet configuration and integral mounting brackets allow for easy installation on wide range of sprayers
- Features modular, flange inlet design for easy assembly into blocks of five, 10 or more section valves
- Includes shutoff time from fully open to fully closed of 0.7 seconds
- Provides flow rate of 27 GPM at a 5 psi pressure drop and 38 GPM at a 10 psi drop with a maximum pressure rating of 175 psi
- Quick connect outlet fitting offers rapid attachment and detachment of boom lines
- Features integrated 3-Pin Metri-Pack 150-series shroud connector
- Optional 98546 adapter cable is available for easy electrical hookup
