Dual Counterbalance HICs with Make-up Checks

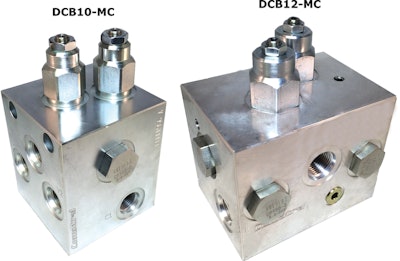

Dcb Group 11327519
Comatrol018 10714694

Comatrol introduces two frame sizes of dual counterbalance, pre-engineered hydraulic integrated circuits (HICs) that include integral makeup checks.

  • DCB10-MC has the capacity for flows to 57 LPM [15 GPM]
  • DCB12-MC 95 LPM [25 GPM]
  • Both available in aluminum [(210 bar (3,045 psi)] and ductile iron [350 bar (5,075 psi)] bodies
  • Used for controlling loads in bi-directional motion such as wheel and swing motor applications or for cylinders going over center
  • When make-up feature is needed, connect ‘T’ port to reservoir or charge system; this allows the load to be smoothly controlled with minimum energy loss, while eliminating noise due to cavitation
