i-Design Version 3

Idesignversion3 10058326
Hydraforcenewtagline 10277017

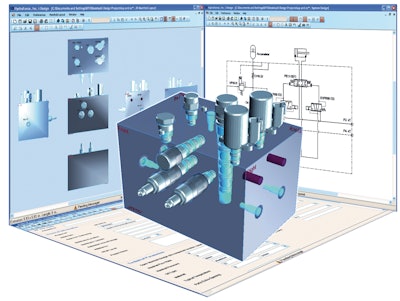

HydraForce releases i-Design Version 3, a free Hydraulic System Design Software to create custom integrated manifolds from the very beginning design stages all the way through pricing and quoting to customers.

  • Incorporates the schematic layout and pricing tool from previous versions with the addition of a 3D layout tool
  • When design and layout are finished, the software has a built-in design check that will provide a variety of detailed warnings, such as incomplete product specifications, errors in component size, pressure or flow setting, etc.
  • Approved i-Design users can contact the HydraForce i-Design Help Desk to obtain a copy of the price book, which when added to the software, shows the price of each component build as you configure the valve
  • 2D interface of the six faces is available for users that are comfortable with the previous interface
  • Full 3D rendering of assembly also available
  • Block size will decrease until a minimum size is achieved based on the placement of the components and available extrusion sizes
