Basic Pull Grader Designs

There were two basic types of pull graders, as well as some purpose-built variants, designed to meet specific application needs.

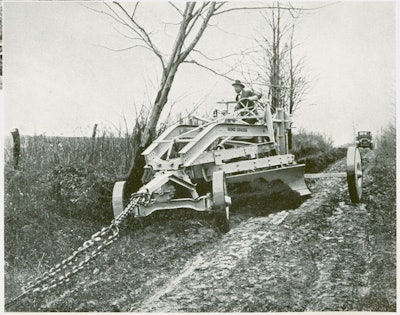

Tree removal wasn’t a typical application for a pull grader, but Rome Manufacturing demonstrated the robust construction of one of its larger graders by having it uproot a roadside tree without suffering distortion or damage.
Tree removal wasn’t a typical application for a pull grader, but Rome Manufacturing demonstrated the robust construction of one of its larger graders by having it uproot a roadside tree without suffering distortion or damage.
Rome Manufacturing Company Bulletin 2, n. d., HCEA Archives

There were basic types of pull graders. The larger, heavier and more robustly built machines were intended for ditching, road construction, heavy grading, sloping and the like, and the smaller and lighter graders were designed for road surfacing. Graders of either type could also see other services, such as brush clearing or snow removal.

The latter graders were often called patrols. According to a catalog published by Austin-Western in 1925, this term arose from the patrol system of road maintenance: A patrolman was assigned a beat, consisting of a given section of road, and he used a light grader that he often provided himself to keep it in good repair through a regular schedule of passes, usually without engaging in ditching or heavy grading. The term gave rise to the “motor patrol” name given to many early motor graders.

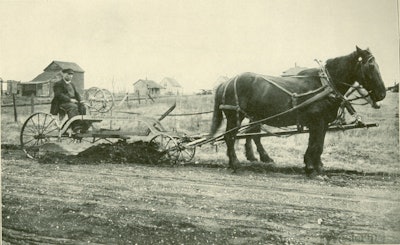

There were also purpose-built variants. The terracer was a small, heavy-duty grader that hitched directly to the tractor rather than having its own front axle, and was used to cut irrigation ditches and sidehill terraces. There were also road planers, road shapers and the like that utilized planes, scarifiers, drums and other implements in place of a simple blade to work the surface of a rutted road. Patrol grading, exemplified by a Western Patrol Grader No. 2 with typical power.Patrol grading, exemplified by a Western Patrol Grader No. 2 with typical power.Austin-Western Road Machinery Company catalog, 1925, HCEA Archives

In one of the last significant uses of pull graders, the U.S. Army’s Airborne Engineer Aviation Battalions used Adams Leaning Wheel No. 11-S pull graders, basically a stock Leaning Wheel No. 11 patrol with the teamster’s seat removed, in its World War II glider operations.
