Westech Vac Systems Introduces New Wolf Hydroexcavator

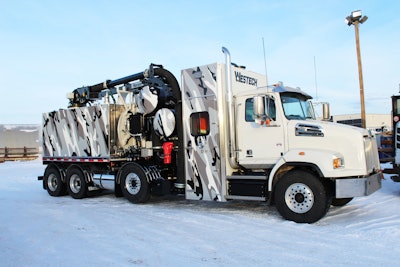

Side-mounted tanks on the Westech Wolf hydroexcavator reduce vehicle weight over 40% while optimal chassis positioning ensures proportional payload distribution.

Westech Wolf Hydrovac 1 58d4023acd2b4
Fs Horiz Redgrey 10930495

Westech Vac Systems, a leading provider of rugged, high-quality vacuum truck-mounted solutions, has introduced the Westech Wolf non-code certified hydrovac truck for oil and gas customers working in extreme conditions. Developed in collaboration with Federal Signal’s Environmental Solutions Group, the Wolf hydroexcavation truck is the first new product launched by Westech since the company’s acquisition by Federal Signal Corporation in 2016.

“The Westech Wolf hydrovac represents the inaugural customer- and application-focused products developed in collaboration with Federal Signal’s Environmental Solutions Group,” says Brett Hart, General Manager at Westech. “During the planning phase for the Wolf hydrovac, we worked closely with our customers to understand their needs, applications and struggles with current vacuum excavation equipment. We received great feedback on payload capacity and debris offloading. Our customers value simplicity and the ability to identify and perform maintenance while operating in remote locations.”

The result of extensive testing and product input from a large network of engineering and design resources, including customer feedback, the rugged, heavy-duty Wolf hydroexcavator was purpose-built for customers who need a durable truck that can tackle applications in extreme cold and harsh terrain conditions.

Improved weight distribution

“The Westech Wolf was designed to constantly maintain the centerline for the water tank and debris body,” says Ben Schmitt, Product Manager at Westech. “As water is reduced and debris is loaded, the weight increases on the individual axles equally.”

With the Wolf hydrovac, the debris body is positioned on the optimal spot of the chassis to ensure the payload is proportionately distributed across all axles simultaneously. Schmitt added that the Wolf design is unlike other hydroexcavators that feature uni-body designs with sloped floors where weight shifts as water is used and debris is loaded, which often results in lost payload capacity.

The Westech Wolf maximizes legal payload for customers and improves operational efficiency. “Maximizing productivity while adhering to strict weight regulations is a constant challenge for hydrovac contractors,” Schmitt says. “Weight restrictions are being enforced like never before. Combined with addressing extreme weather and terrain elements, and ever-changing site conditions, contractors require the very best equipment to conquer the job.”

Water tanks

The side-mounted water tanks on the Wolf hydrovac are designed to reduce the weight by more than 40%, lowering the overall cost of the truck. The tanks are joined from left to right with a cross-over equipped with glycol heat tracing, and the water supply line to the front wash cabinet is internally traced as well. The 1,500-gal. capacity ensures ample water storage capacity for large or remote jobs. A top-mounted “no-touch” water fill system is easily accessible from the passenger side of the vehicle.

“Depending on soil conditions and choice of water nozzle, many customers are performing an entire day’s digging with only one load of water on the Wolf, while remaining well under legal weight limits,” Schmitt says.

Ease of offloading

“The dumping debris body design improves the customer’s productivity by reducing the time required at the dump site. And less time at the dump site means more time working,” Schmitt says. “The Wolf allows our customers to be more competitive when bidding jobs and reduces the overall time to complete a project, earning them more business and a solid reputation for cost-effectiveness in the hydrovac industry.”

The debris body is lifted using a telescoping, dual-acting hydraulic cylinder capable of 36,000 lbs. of force. When fully extended, the debris body exceeds a 45-degree dump angle for fast and efficient offloading. To help the offloading process, a heavy-duty, hydraulically powered tank vibrator is mounted to the belly of the debris body. A standard splash shield has been fitted to the rear of the unit to direct the offloading debris.

Product specifications

  • Vacuum system: Hibon 8702 tri-lobe blower rated at 5,300 CFM and 27-in. Hg
  • Water pump system: CAT 3560 triplex water pump rated at 20 gpm and 3,000 psig
  • Debris capacity: 14 cu. yd. debris capacity w/ internal float ball shut-offs
  • Boom size and reach: 10-in. turret design with 26-ft. overall reach, 320 degrees of rotation
