Bosch Bringing Automotive Multi-Camera System to Logistics Market

The system's four near-range cameras capture a vehicle’s entire surroundings while sight assist and route overlay increase safety for forklift operators in logistics applications.

Cca1 Visual Webstory Forklift Sensors360 Rgb 6000px 6000px 300dpi 201807266500x3656

In a warehouse, space is often hard to come by. Forklift drivers frequently have to maneuver their vehicles through tight spaces between shelves and stacked pallets. Time and again, this leads to accidents that result in damage to the goods or the vehicles – a consequence that is not only annoying, but can also become quite expensive. A far worse consequence than property damage is personal injury. According to a study by the German employers’ liability insurance association for the wood and metal industries (BGHW), personal injuries occur most often when the vehicle is backing up in a small space of 1-3 m. In Germany alone, official reports put the number of accidents involving forklifts at some 12,000 each year (source: WEKA). “A driver’s eyes cannot be everywhere at once – that’s where the Bosch multi-camera system comes in,” says Andrew Allen, responsible for Bosch’s Commercial Vehicle and Off-Road unit. The system will be publicly showcased for the first time at LogiMAT.

The full picture

Using the sight assist, the multi-camera system can provide a full 360-degree view around the forklift – even if it is carrying bulky freight. This simplifies the task of picking up and moving loads, even in tight spaces. The system helps the forklift maneuver with precision and makes it possible to estimate distances more accurately while on the move. Drivers can thus execute logistics tasks simply, safely, and efficiently.

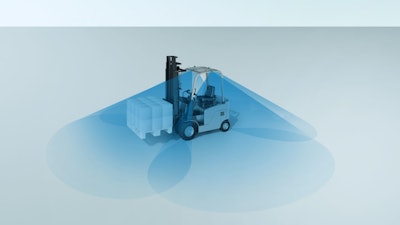

The multi-camera system consists of a control unit plus four very compact near-range cameras. Working together, they can capture an area measuring eight by eight meters. The cameras were originally designed for Bosch’s passenger-car segment but have now been adapted for the special needs of the logistics market. Cc Picture Gabelstapler 6000x6000 300dpi Cmyk Layer 20170524 Sight AssistBosch

Cameras capture the vehicle’s entire surroundings

Cameras are positioned at the front, rear, and each side of the vehicle. With an aperture of nearly 190 degrees, they capture the vehicle’s entire surroundings. Drivers see a realistic representation of their vehicle as a detailed 3D model on a display. As the vehicle moves, the display adjusts the view of its surroundings in real time. To better suit the vehicle’s purpose, the manufacturer can preconfigure the screen to display individual or 360 degree views as well as full-screen or split-screen views. The driver then can choose the best view for the task at hand from the preprogrammed options.

Route overlay shows the way

The multi-camera system can visually project the vehicle’s immediate path over the forward, rear, or top view. To achieve this, the control unit measures the steering angle, calculates the resulting route, and shows it on the display. If the steering angle changes, the system recalculates the route and adapts the display accordingly. The route overlay serves primarily to aid in maneuvering and merging.
