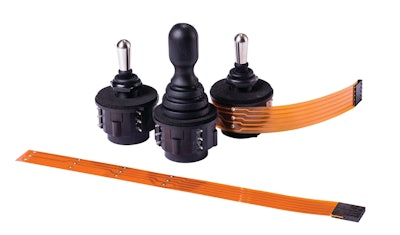

NZ Series Compact Switch Joysticks

APEM's NZ Series compact switch joysticks provides an above-panel option that mimics the look of joysticks and toggle switches.

Apem Nzseriescompactswitchjoys 11077313
Logo Apem 10933224

APEM Inc. introduces the NZ Series of compact switch joysticks. The NZ Series is designed for control of either machine functions or menu navigation.

  • Offers above panel options that mimic the look of either a joystick or toggle switch
  • Provides IP67 panel sealed, two axes control in a compact below panel housing
  • Two switch options available
  • Constructed with gold plated silver alloy contacts to provide reliable switching at low current levels
  • Rated for 2A and 100mA respectively
  • Open square gate allows user to move freely in 360 degrees
  • Omni-direction movement enables user to move in a diagonal direction which yields a contact on two switches simultaneously
  • As a standard option, may be factory fitted with an anodized aluminum limiter plate, limiting the travel to just NSEW or NS directions
  • Includes alternate handle selection and a Polyimide Flexi Tail termination option
  • Rated for 1 million operations
  • Features operating temperature range of -25 to 50 C
