OTTO G2 Commander Grip

The OTTO G2 Commander Grip includes a USB option which supports up to 18 buttons and eight analog inputs.

November 17, 2017
OTTO Engineering Inc.

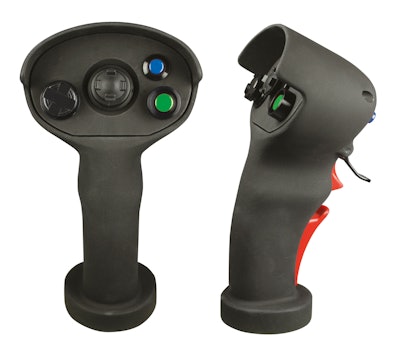

Commander Grip Front And Side
OTTO exexcel 3x3 578d797091bcc

OTTO's latest version of the G2 Commander Grip features a USB option.

  • Cast from aluminum alloy to ensure durability in demanding applications
  • Standard G2 Commander Grip offers nine different faceplate configurations that include pushbutton, toggle, transducer, split trim and Hall Effect switches
  • Thousands of custom faceplate configurations possible
  • Grip body has 10 potential switch location options
  • Enhanced with USB option that enumerates as a standard human interface device (HID) joystick
  • No software drivers are required
  • Internal USB device supports up to 18 buttons and eight analog inputs
  • Easy to install, though some calibration may be needed
  • Suitable for use in military, aerospace and industrial applications
  • Available as xed grip or can be mounted on joystick
  • Operator presence and trigger options
  • Tested to withstand a 265 lb. load
  • Grip is sealed to IP68S (subject to change based on switch choice)
