ecomat Mobile Basic Line Modular Control System

ifm introduces the ecomat Mobile Basic Line, a 3-Piece modular control system for mobile applications.

Mobilebasicweb 10258426

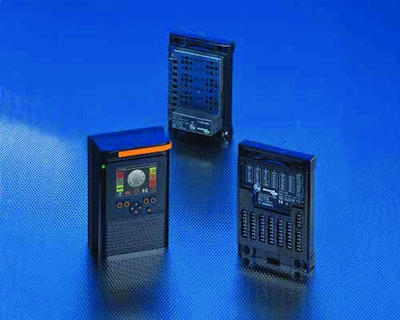

ifm efector inc., introduces the ecomat Mobile Basic Line, a 3-piece modular control platform for mobile vehicles. Designed for easy wiring, simple installation and reduction of space needed for visualization on a dashboard, the Basic Line includes three compact units – a controller, a relay and a display.

Controller

  • Compact module with 32-bit processing power and 2 CAN-bus ports
  • Replaces conventional relay logic and complex process controllers
  • Electronics integrated into compact, plastic housing that provides connections for inputs and outputs, communication and programming
  • Status LED indicates current operating status
  • Programmable to IEC 61131-3 with CoDeSys software that supports all common CoDeSys programming languages
  • Structured function libraries are available for communication and special unit functions
  • Two CAN-bus ports interface to ISO 11898 standard, and supports CANopen and J1939 protocol

Relay

  • Simplifies wiring and battery connection and eliminates external terminals
  • Expandable and able to streamline wiring
  • Becomes a decentralized “control room” for mobile applications
  • Iinstalls in areas with limited mounting space
  • Features locations for automotive ISO relays
  • 2.8 mm spring contacts allow use of solid state and logic relays with diagnostic capability
  • Offers ten locations for automotive fuses to protect individual load circuits
  • Load currents allow distribution via a common power rail and additional star points
  • Integrated screw terminals enable simple connection to battery cables

Display

  • Full-color, high-resolution display that can replace multiple gauges on a vehicle dashboard
  • Provides resolution of 320 x 240 pixels and color depth up to 256 colors
  • Integrated 32-bit processor tailors to any application
  • Status LED indicates current operating status
  • Programmable to IEC 61131-3 with CoDeSys software that supports all common CoDeSys programming languages
  • Structured function libraries are available for communication and special unit functions
  • Graphic elements are created and animated via integrated visualization
  • CAN interface to ISO 11898 exchanges data between connected controller, decentralised input/output modules or engine controller
  • Supports CANopen and J1939 protocol
  • Enables building of networks via decentralized input/output modules
