Hirschmann qSCALE I2/I3 Load Moment Indicator

Hirschmann has released the qSCALE I2/I3 load moment indicator for use in mobile cranes.

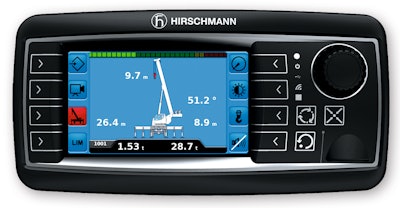

Hirschmann Qscale I2 11187858
Wika Mobile Control Logo Unternehmen 2018 01

Hirschmann Mobile Machine Control Solutions introduces qSCALE I2/I3 load moment indicator, an effective and safe management solution for load moment devices that meets the application needs of mobile cranes.

  • Graphically displays crane's current load and geometric information, including actual and allowable load, boom length, boom angle and load radius
  • Integrated bar graph on display provides operator with information about crane's utilization
  • Available with 4.3 in. (qSCALE I2) or 7 in. (qSCALE I3) display featuring HMI graphic interface for easy operation
  • Features IP66/67 protection rating which is suitable for use in both non-cab and in-cab applications
  • Configuration Tool eliminates need for programming and is not necessary to have CoDeSys knowledge
  • Configuration functions for applications are executed by system integrator
  • Enables customized visualization with individual graphics
  • Configuration Tool is available in three versions depending on what is required: certain management functions, controlled calibration, or complex crane diagnostics
  • Menu-driven calibration process helps reduces calibration time and complexity
  • Sensors can be chosen freely, depending on whether signal is transmitted through power, CANopen or wireless
  • Uses simple step-by-step process to lead operator to correct setting
  • Graphic elements are always displayed for selection and can be compared directly with crane
  • Features integrated real-time PLC-Control
  • Provides extensive diagnosis and service functions
