CCpilot VC

At CONEXPO 2014 maximatecc presents the CCpilot VC display product platform.

5 11328825
Download 58335cab90956

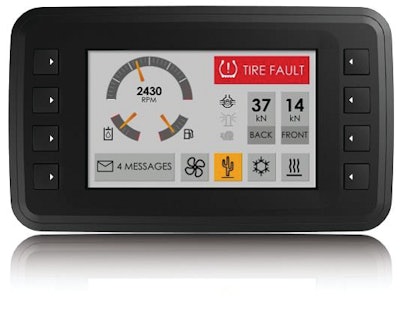

maximatecc presents its CCpilot VC display product platform with its ARM core, a powerful software platform and high readability 5 in. display with optional touch screen. The display makes it possible to offer a premium user experience and enhanced operator support functions in cost sensitive construction and agricultural vehicle applications.

  • Based on ARM Cortex A8 core with Linux operating system
  • Choose to run applications on the Linux system or utilize the LinX Software Suite, an open software application platform where applications are developed in Qt and/or CoDeSys
  • maximatecc offers complementary software development services that can be deployed either on advisory basis or for development of a complete system
  • TFT display with WVGA form factor and resolution
  • Standard version uses 8 configurable push buttons for user interaction
  • Option to have both push buttons and touch screen
  • Enclosure designed for flush mounting in a panel/dashboard/armrest, but can be fitted to a bracket
  • Features 2 CAN interfaces, supporting either CANopen or SAE J1939
  • Other serial interfaces are Ethernet and USB, used for software load, peripherals, etc.
  • Analog video input (PAL/NTSC) makes it possible to use CCpilot VC as a video monitor
