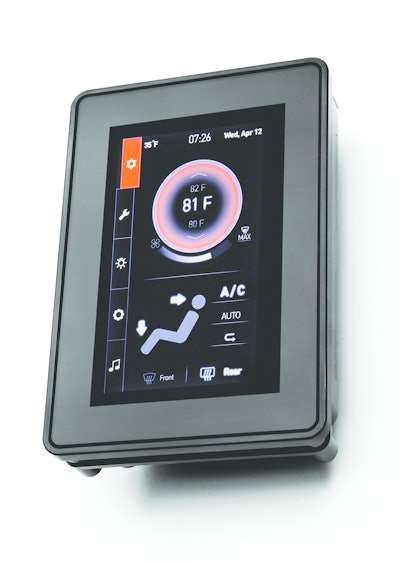

Grayhill Series 3D50 Touchscreen Display

Grayhill's Series 3D50 touchscreen display uses intuitive touch technology for easy selection and swiping through screens by operator.

Grayhill 3D50 55ad22b2b6cd2
Grayhill Lockup Main Horizontal Black + Rgb 199 (1)

Grayhill Inc. has released its Series 3D50, a 5-inch touchscreen display for construction and agriculture vehicles.

  • Combines powerful processor with VUI Builder software tool for developing custom graphics, messages and gauges
  • Features intuitive touch technology to select objects and swipe through screens
  • Advanced touch sensor automatically recognizes between bare and gloved hands, even when the display surface is wet
  • Utilizes 5-inch backlit WVGA LCD, enabling high contrast text and graphics for sunlight readability
  • Scratch-resistant, anti-glare window is optically bonded to LCD for protection and enhanced optical characteristics
  • Uses Grayhill’s VUI Builder software tool for easy integration with an ECU
  • VUI Builder is used to create screens and graphic objects that display real-time gauge data, alert messages, clocks/run meters, diagnostics, maintenance information, machine setups and operator instructions
  • Can be used as simple terminal to display objects direct from the vehicle's ECU, such as fault or service messages
  • Using the touchscreen, operators can select information they want to present from the objects and screens loaded in the flash memory or sent from vehicle ECU
  • Development kit includes flush mounted display that seamlessly integrates into any cab design
  • Available in three standard configurations: with RS-232, USB and 1 CAN port; with the addition of a second CAN port, 2 video connections and I/O; and with the addition of a projected capacitive touchscreen
  • Built for rugged conditions and harsh environments common in agriculture and construction vehicles, and meets appropriate ISO and ANSI specifications
