Rexroth BODAS DI4 Display

The BODAS DI4 display from Rexroth enables custom visualization and functionality via CODESYS 3.5 development software.

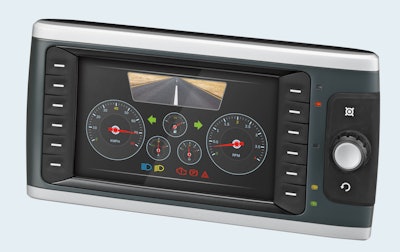

Foto PI 045 15 DI4 5660947c2f058
Rexroth Logo 4 C

Rexroth expands its BODAS modular system for mobile electronics with the BODAS DI4 display, a universally useable operating unit for mobile working machines.

  • Enables programming with CODESYS 3.5 development environment, allowing individual visualization and allocation of functions
  • Simplifies diagnosis and re-parameterization of BODAS controllers connected via CANbus by loading new data sets via integrated USB interface and "flashing" them onto corresponding controller
  • Can be freely designed and flexibly incorporated into cockpit designs
  • CODESYS 3.5 development environment enables users to visualize any machine functions both statically and dynamically
  • Two hardkeys for set functions and 12 freely programmable function buttons are available
  • Allows drivers to intuitively select functions without visual contact with the control panel with a turn/push button
  • Ease of use is further increased by illuminated operating elements and four color-LED indicator elements
  • Simplifies maintenance by allowing authorized maintenance technicians or operators to use the display as a master and access other BODAS control units integrated in the machine without an external diagnosis tester and also outside of workshops
  • Reads out active and saved errors to help accelerates diagnosis
  • Service engineer can load new parameters for BODAS controller via integrated USB interface or transfer new application programs by "flashing"
  • Can be used as stand-alone unit and positioned extremely flat, almost flush in the cockpit either in a portrait or landscape position
  • Can be rotated in 90-degree steps and is equally suitable for left-handers and right-handers due to symmetrical layout
  • Standard version includes two video interfaces, two CAN 2.0B interfaces and a USB interface, as well as numerous analog and digital inputs and outputs
  • PRO version includes touchscreen, Ethernet interface and will have Bluetooth interface in future
  • Using pre-installed PDF viewer and audio and video player allows machine manufacturers to make multimedia-based content available, simplifying learning curve and supports users in proper use of seldom-used functions
