Trimble MBR Series Displays

The Trimble MBR Series Displays enable users to monitor crane sensors including load, wind speed and boom angle, and will be on display at bauma 2016.

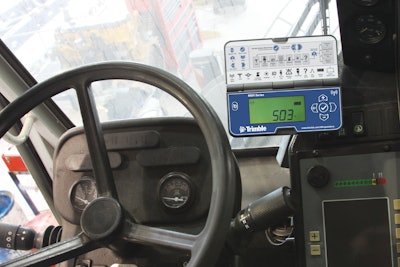

Trimble MBR105 Display 56fac5bfe2263

Trimble announces the availability of the Trimble MBR Series Displays for quick, handheld or cab-mounted wireless monitoring of crane sensors.

  • Can monitor load, wind speed, wind gust, A2B, boom angle, trim angle, list angle, rope payout, rope speed and/or pressure for many crane and lifting applications
  • Includes handheld, battery-powered version (MBR100) or a cab-mounted, vehicle-powered version (MBR105)
  • Both display models can monitor one analog and one digital sensor simultaneously
  • Battery-powered MBR100 operates with four 'AA' cell batteries and is lightweight (0.95 lbs. or 430 g)
  • MBR105 operates with a 9-30V power connection
  • MBR100 features long battery life, up to 90 operational hours using alkaline batteries or 125 operational hours using lithium batteries
  • Helps simplify sensor ID programming and taring a load
  • Well suited for load testing applications with the flexibility to check and monitor standard sensor data
  • Features wide line-of-sight wireless communication range of 4,260 ft. (1,300 m)
  • Can monitor sensors using Listening Mode without modifying current RF network hierarchy
  • Users can set limits for alarms and view peak load during use when programmed with a load sensor
  • Applications include use by OEMs for testing a machine's design, crane supervisors monitoring a load, or an inspector certifying a crane during its annual inspection
  • Ambient operating temperature range of 5-122 F (-15-50 C)
  • Includes IP65 rated composite enclosure and features an ISM license free radio optimized for communication in industrial environments
  • MBR105 Display has an available lockout function
  • Both displays have hinged lid that opens and closes for safe storage and screen protection
  • Optional neck lanyard and wrist strap is available
  • Compatible with Trimble's Lifting Solutions wireless sensors and transmitters
