HED CL-709 4.3-in. Color Display

HED Inc. has developed the CL-709 4.3-in. color display featuring a sunlight readable LCD screen and 32-bit Freescale PowerPC processor.

April 5, 2016
Hydro Electronic Devices Inc. (HED Inc.)
CL 709 5702e090aaf96

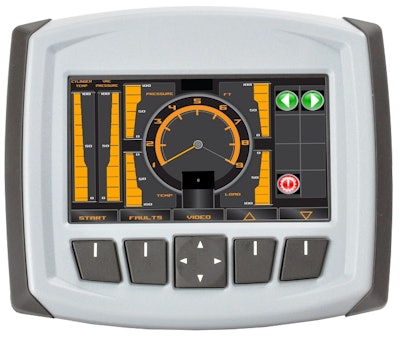

HED Inc.'s CL-709 4.3-in. (10.9 cm) color display features an optional integrated I/O for stand-alone control applications.

  • Features powerful 32-bit Freescale PowerPC processor
  • Provides LCD graphics and CAN communication functioning immediately on power-up
  • Sunlight readable 480x242 LCD (optically bonded AR lens)
  • Rugged design meets EMC, HALT and IP67 ratings
  • Operating temperature range is -40-70 C (-40-158 F)
  • Enables RAM or panel mounting
  • Includes Real-Time Clock (RTC) and low power sleep mode with wake-up
  • Features four 2A PWM Outputs and six software configurable inputs
  • Inputs types are digital, analog, RTD, frequency, PWM and encoder
  • Well suited for gauge cluster replacement, engine monitor and control, and diagnostic display for any system
