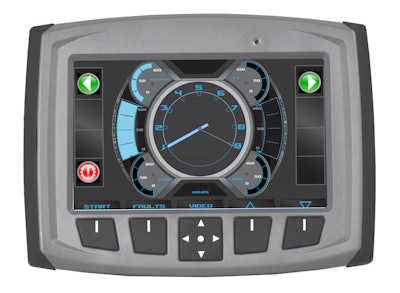

HED CL-711 7-in. Color Display

HED Inc.'s CL-711 7-in. color display meets IP67 standards and includes a low power sleep mode with wake-up.

CL 711 5702e27dc0899

The CL-711 7-in. (17.9 cm) color display from HED Inc. features a powerful architecture with dual Freescale processors.

  • Includes optional integrated I/O for stand-alone control applications
  • Display processor is Cortex A8 ARM (800MHz), 4GB FLASH (32GB option), 512MB RAM
  • CAN, I/O and logic processor is S12X  (CAN and I/O immediately on power-up)
  • Linux operating system (ARM)
  • Features sunlight readable 800x480 LCD (optically bonded AR lens)
  • Rugged design meets EMC, HALT and IP67 ratings
  • Operating temperature is -40-70 C (-40-158 F)
  • RAM or panel mount design
  • Four video inputs are included with dual video ability
  • Low power sleep mode with wake-up
  • Features four 2A PWM outputs and six software configurable inputs
  • Inputs types are digital, analog, RTD, frequency, PWM and encoder
  • Well suited for gauge cluster replacement, engine monitor and control, and diagnostic display for any system
