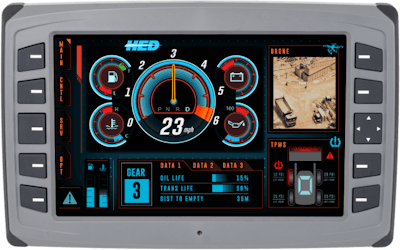

HED CL-712 10.1-in. Color Display

The CL-712 color display from HED Inc. includes four video inputs with dual video capabilities.

He Ddisplay 584f1a6ad7607

The HED Inc. CL-712 10.1-in. (25.7 cm) color display is available with an optional integrated I/O for stand-alone control applications.

  • Includes powerful architecture, with dual Freescale processors
  • Display is a Cortex A8 ARM (800MHz), 4GB FLASH (32GB option), 512MB RAM (1GB RAM)
  • CAN, I/O and logic is S12X (CAN & I/O immediately on power-up)
  • Linux operating system (ARM)
  • Sunlight readable 1,280 x 800 LCD screen (optically bonded AR lens)
  • Ruggedly designed to meet EMC, HALT and IP67 standards
  • Operating temperature range is -40-70 C (-40-158 F)
  • Can be RAM or panel mounted
  • Four video inputs with dual video ability are included
  • Features low power sleep mode with wake-up
  • Includes four 2A PWM outputs and six software configurable inputs
  • Inputs types are digital, analog, RTD, frequency, PWM and encoder
  • Well for gauge cluster replacement, engine monitor and control, and diagnostic display for any system
