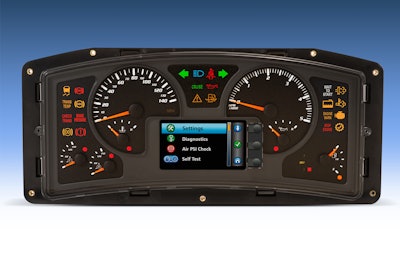

AMETEK Universal Instrument Panel-Color Display

The UIP-CD (Universal Instrument Panel-Color Display) joins the UIP family of dashboard displays from AMETEK Vehicular Instrumentation Systems (VIS).

• Customized gauges, telltales and displays
• Large, easy-to-read color graphics
• Provides real-time data information, diagnostics, fault codes, user set up features and maintenance requirements
• 4.3-inch WQVGA (wide quarter video graphic array) LCD full-color display.
• Up to eight gauges and twenty LED telltales, with four of them dimmable for night-time driving
• Up to seven stepper-motor-driven gauges
• One of the gauges is a bar graph gauge with four progressive bars that can satisfy requirements for a DEF (diesel exhaust fluid) gauge on Tier IV diesel engines; its lowest bar can change from green to amber to red at customer-specified values to alert the operator of critically low conditions
• Speedometer gauge automatically backlights either the major or minor scale, depending on whether English or metric is selected in the menu
• Internal alarm with multiple sounds can be configured for various alarm conditions
• Five of the panel’s gauges have warning LEDS to alert the operator to existing conditions
