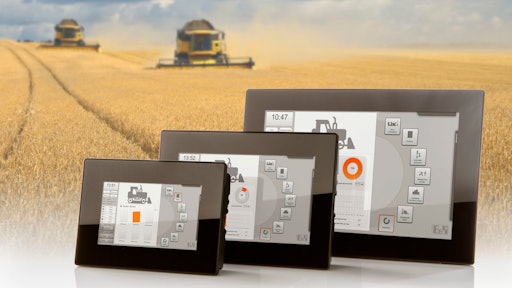

B&R Power Panel T50 Mobile Operator Panel

The B&R Power Panel T50 mobile features a projected capacitive touchscreen to provide visibility in any conditions including rain.

Bn R Power Panel T50

B&R is expanding its mobile automation portfolio to include the Power Panel T50 mobile, an operator panel for agricultural, construction and municipal vehicles.

  • Available with display diagonals of 5, 7 or 10.1 in. (12.7, 17.8 or 25.7)
  • Die-cast aluminum housing provides necessary mechanical rigidity
  • Includes IP67 protection to easily withstand heat, cold, dirt, moisture, shock and vibration
  • Projected capacitive touchscreen can be operated in the rain
  • Maintenance free
  • Compact design, shallow installation depth and optimized arrangement of cable outlets eases mounting and saves space
  • Available mounting types include standard brackets, panel mounting or front plate mounting
  • Embedded browser for viewing HMI applications created with B&R's mapp View software
  • Built on the web standards HTML5, CSS3 and JavaScript, mapp View ensures optimal viewing on any device
  • B&R offers various widgets that can be dragged and dropped into place to create attractive user interfaces with gesture operation
  • Easy to configure
  • Ethernet interface on M12 connector allows for communication with the X90 controller, which acts as an HMI server
  • Superseal multi-connector includes supply voltage, USB port and digital I/Os
