TTControl Vision 3 Display

The Vision 3 display offers the high bandwidth and high processing power to be the face of highly scalable and versatile vehicle system architectures.

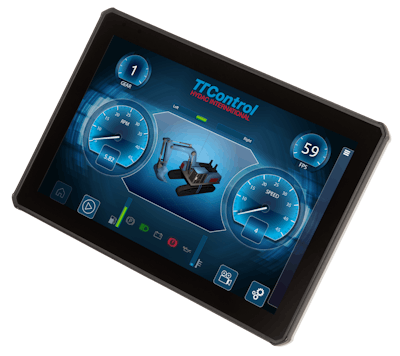

01 Vision 3 Display Copyright Tt Control
Tt Control Logo Blue Rgb

TTControl announces the global product launch of Vision 3. This latest display generation is designed to be in the center of complex vehicle system architectures due to its extensive set of interfaces.

  • Combines 12 in. (30.5 cm) touchscreen, high level of robustness, slim design, and high CPU performance with short boot-time
  • Intuitively presents comprehensive data from multiple vehicle sources such as sensors, actuators and hydraulic subsystems
  • Displays information from vehicle’s surroundings received by camera, radar or lidar technology
  • Can be integrated into existing vehicle architecture
  • Allows high versatility for state-of-the-art machine functions and paves the way for future innovative applications
  • Easy-to-use graphical applications and video streams can be visualized on display to guide and train operators to improve worksite safety and machine productivity
  • Tailored for use in off-highway applications
  • Enables up to four simultaneous camera streams to aid with visibility improvements
  • Comes in the variants Vision 312 and Vision 312Plus
  • Features single or quad-core NXP i.MX6 processor with up to 1 GHz and up to 2 GB DDR2 RAM
  • Advanced cooling concept ensures uncompromised peak performance
  • Includes 100BASE-T1 (BroadR-Reach) or a 100BASE-TX (Standard Ethernet) interface, and up to four CAN interfaces, one of which is ISOBUS-compliant
  • Powerful graphical multimedia processor and integrated loudspeaker allow for advanced operator support with animated design and audio-visual warnings
  • Can be mounted in portrait or landscape format as well as on a RAM-mount for flexible operator usage
  • Capacitive multi-touch screen with 1280x800 pixel resolution and up to 1,000 cd/m² luminance is optically bonded to ensure sunlight readability and operation with gloves
  • Robust aluminum housing is IP65 sealed and withstands extreme temperatures, shocks and vibrations

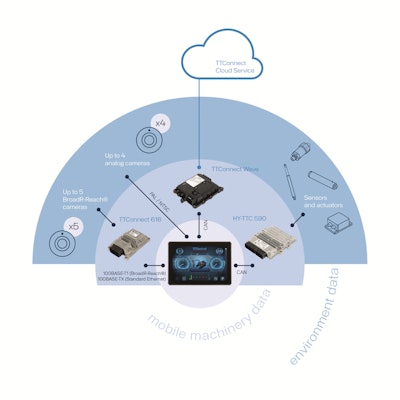

03 Vision 3 Center Of A Complex Vehicle Architecture Copyright Tt Control
