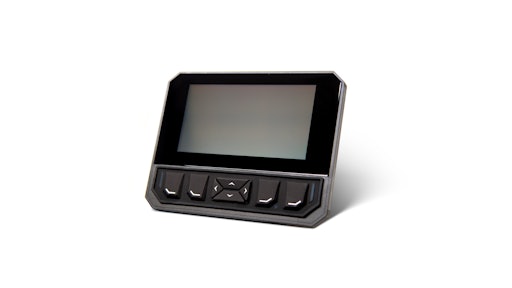

Marlin Technologies M-Flex 4.3 in. Color Display

Marlin Technologies' M-Flex 4.3 in. Color Display features a high brightness LCD screen which ensures visibility in sunlight.

4 3 Display
Marlin Logo Color (1)

The M-Flex 4.3 in. (10.9 cm) Color Display is designed for severe-duty, outdoor mobile applications and built to withstand harsh environmental conditions.

  • High brightness LCD (800cd/m2) for true outdoor viewing in sunlight
  • Wide viewing angle from all directions
  • Designed for 12 and 24V applications
  • Low power sleep mode for applications requiring a direct-to-battery connection
  • Eight pushbutton keypad with tactile feedback provides menu navigation and function selection
  • Silicon rubber pushbuttons have operating life exceeding 1 million cycles
  • Withstands harsh temperatures, shock and vibration, moisture and electrical transients
  • Two RGB multi-color LED’s for status and alarm indication
  • Includes 250/500 Kbps CAN port with autobaud detection
  • CAN protocol J1939, CAN open, and NMEA 2000
  • High resolution color LCD provides customized screen graphics and detailed images
  • Available with two or four configurable inputs that can be configured as analog, digital or frequency, PWM, resistive or quadrature encoder
  • Two half-bridge PWM outputs, configurable as PWM proportional, configurable as a source or sink
  • Optional two high-side outputs rated 3.0A maximum continuous current for on/off control
  • Compact, low profile housing with Deutsch DT style connectors
  • Mounting bracket provides quick, snap-in panel mounting
  • Alternatively, RAM-mount bolt pattern is built into housing
  • Features IP67 submersion and IP69K pressure wash rating > 15 degrees nozzle for maximum water ingress protection
  • RoHS and CE compliant.
  • Can be programmed by Marlin to meet customers’ specific application requirements, saving development time and cost
  • Supply voltage of 8-36V DC operating range, reverse polarity protected
  • Operating temperature range of -20-70 C (-4-158 C)
  • Applications include construction, agriculture, military and other heavy-duty equipment
